Sample Layouts & Sample Quote

(Click on thumbnail to enlarge)

Systems By Bachmann uses Giza software to create isometric drawings.  This software will also generate a complete component list showing individual prices for all items being supplied (see sample below).  Giza software is also installed on a laptop so that during the design phase, the layout can be modified at your office.   By working in this manner, the customer has more input, and a better understanding of the proposed layout.   This results in approved drawings in a shorter amount of time.   Check out  our sample layouts by clicking on the buttons on the left.

SAMPLE QUOTE   PANEL SYSTEMS #1   PANEL SYSTEMS #2

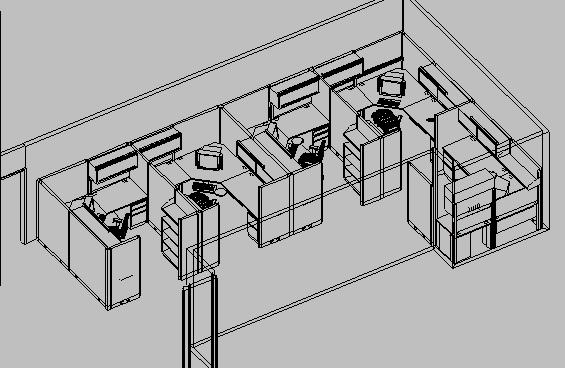

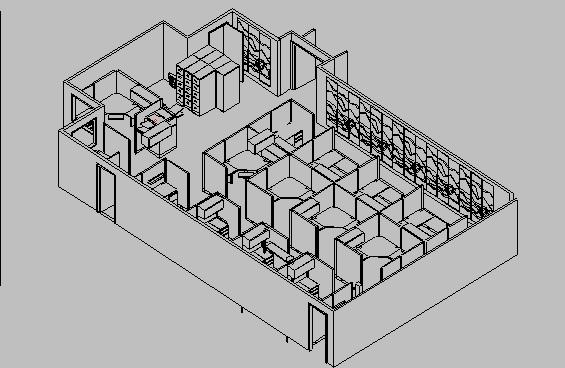

   sample quote21.jpg (162093 bytes)         Enineering Dept. - 3D.jpg (42397 bytes)          PCO - 3 Dimentional.jpg (40603 bytes)

       MOBILE SHELVING    EXECUTIVE OFFICE

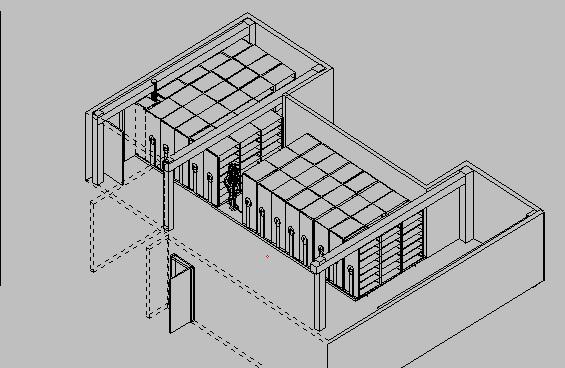

           Mobile Shelving Layout.jpg (38586 bytes)       Copy of Executive Suite Layout.jpg (32398 bytes)
